K530-SP-KSM Plastic Injection Molding Machine-PET Machine Wholesale

KSM Plastic Injection Molding Machine-PET Machine

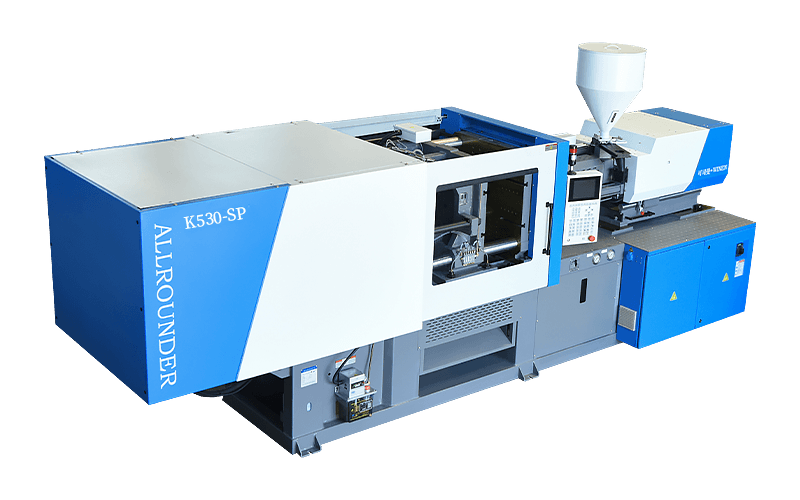

K530-SP

  • share
K530-SP
  • DESCRIPTION UNIT K530-SP
    INTERNATIONAL SIZE RATING 4000
    INJECTION UNIT Screw diameter mm 95
    Screw L:D ratio 25
    Shot volume cm3 3083
    Shot weight(PET) g 3576
    oz 126.1
    Injection pressure Bar 1303
    Injection rate cm3/s 917
    Plasticizing capacity g/s 104
    Max.screw speed r/min 129
    CLAMPING UNIT Clamping force kN 5300
    Space between tie bars mm 870x820
    Platens size mm 1275x1225
    Opening stroke mm 850
    Min.mold height mm 320
    Max.mold height mm 870
    Distance between platens(daylight) mm 1720
    Ejector stroke mm 220
    Ejector force kN 160
    Number of ejector 13
    POWER UNIT Systerm pressure Bar 175
    Pump motor kW 38+38
    Heating capacity kW 47
    GENERAL Oil tank capacity L 700
    Machine dimension(LxWxH) m*m*m 9.6x2.2x3.0
    Machine weight t 23
    Hopper capacity kg 150

High standard factory

about KSM Machinery

Ningbo KSM Machinery Manufacturing Co.,Ltd. is a cooperate with Italy technologies specialized high-grade plastic in production of high-grade plastic molding machine. Our corporation is located in Ningbo Beilun Xing Ao Industrial Park. We have a number of R&D personnel and cooperate with a group of high-tech enterprise.
As a professional China K530-SP-KSM Plastic Injection Molding Machine-PET Machine suppliers and OEM/ODM K530-SP-KSM Plastic Injection Molding Machine-PET Machine company, It mainly produces high precision injection molding machines with the clamping force range from 110T to 1850T. The products have high rigidity structure and equipped imported hydraulic & electrical elements, used screw with mixing head in order to have excellent plastifying performance and be suitable for various engineering plastic injection molding and the uers'special order are available.
Since its corperation established, has always paid attention to enterprise reputation,carrid out scientific, management with rational designs, rests with quality pre-sale, selling and after-sale services to win the vast number user's trust and approval.
We abide by the motto of "honest, keep on improving, lay stress on quality, never relax in effort". Sincerely welcome friends from all wask for guidance.
The company has a research and development center with strong development strength. At the same time, it cooperates with domestic universities and colleges to develop and research injection and plastic production equipment and injection molding machine. The company has advanced hose testing equipment and experimental equipment. In recent years, the R&D center has achieved many achievements in injection molding machine and plastic equipment, rubber vulcanization process and formulation development.
Sincerely invite customers at home and abroad to visit our factory, and look forward to your long-term corporation to create a beautiful tomorrow for you!

Why choose us

Our advantages

  • quality

    We have our own testing lab and advanced and complete inspection equipment, which can ensure the quality of the products produced by our equipment.

  • capacity

    Our annual production capacity is over 500 set injection molding machine.

  • service

    We focus on developing high-quality products for top-endmarkets. Our products are in linewith international standards, and are mainly exported to Europe, America,Japan and other destinations around the world.

  • shipment

    We are only 15 kilometers away from the Ningbo Port, it is very convenient and efficient to ship goods to any other countries.

Guarantee High Quality With Our Expertise

certifications

Our professional team can offer wireless full range service and customer-oriented service according to customers' individual requirements.
